MM Centre-Flange Bearings - DIN 31694

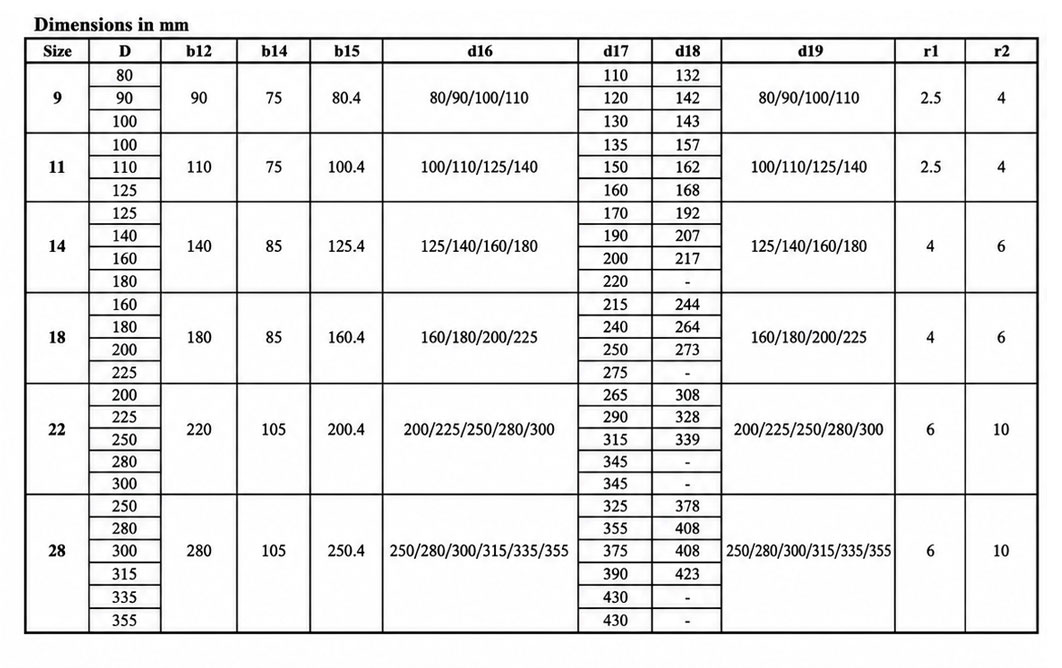

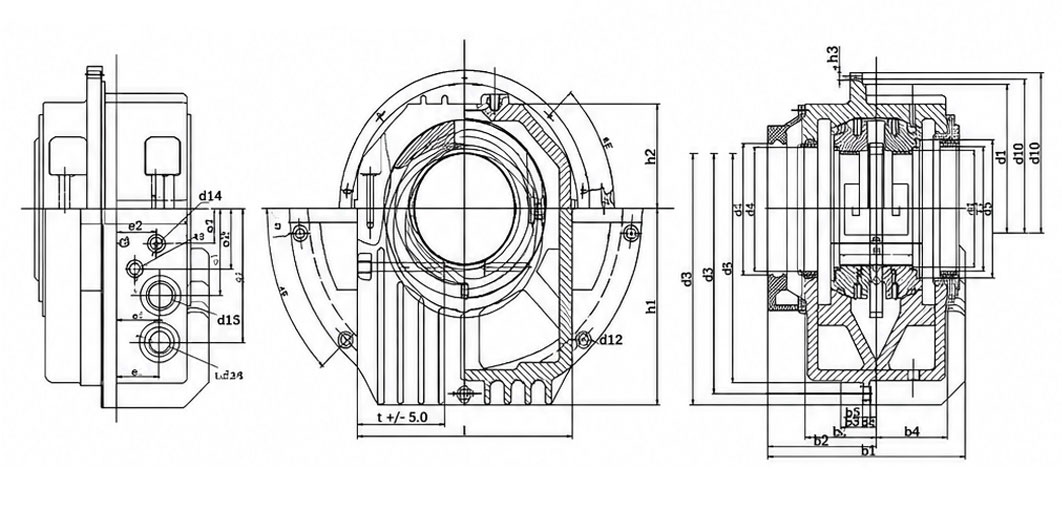

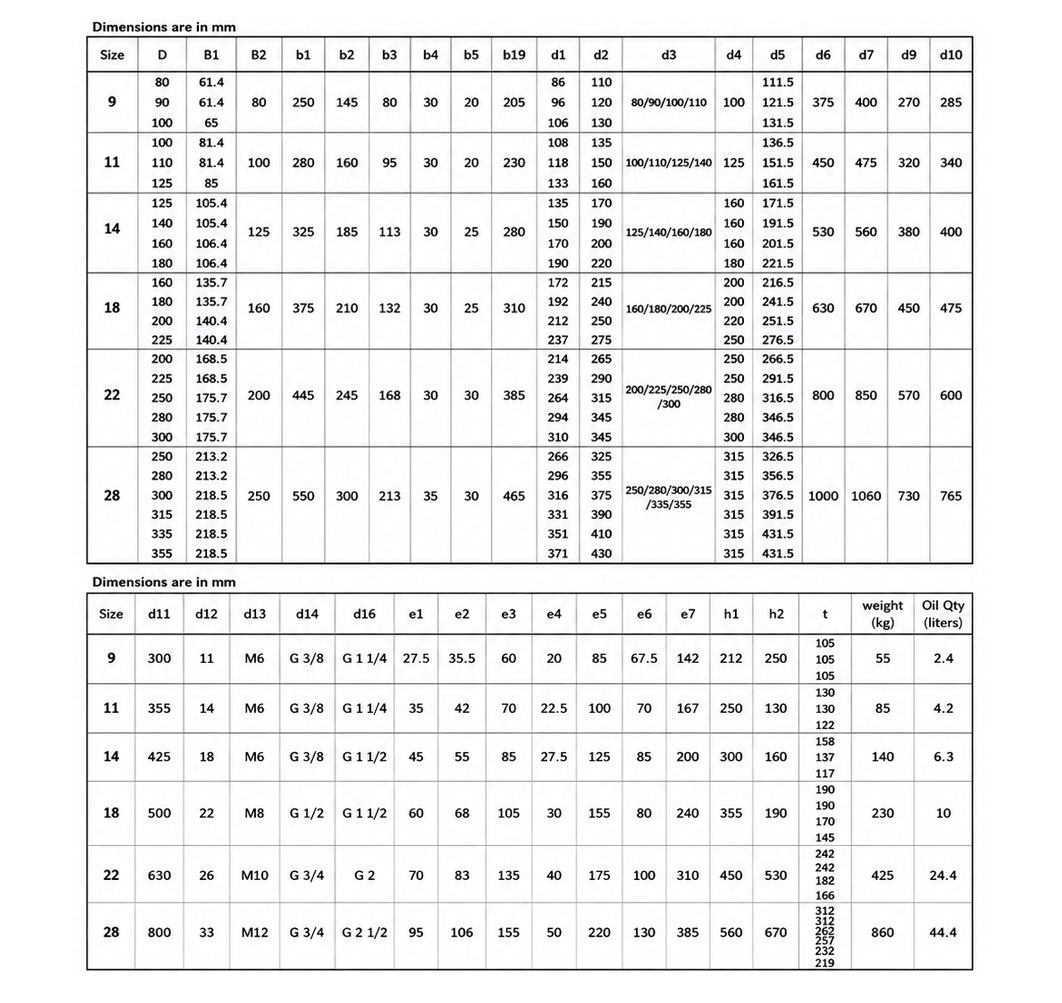

The Side Flange Bearing type MM is a variant of the M modular Bearing system. Centre-flange Bearings (type MM to DIN 31694) specifications are mainly applied on electrical machines, turbines, fans and blowers and marine applications. A mounting flange with a locating spigot is provided near the center line of the Bearing Housing Elements of the M Modular system can readily be combined or exchanged. For example, it is easy to change a bearing shell with plain axial thrust shoulders for one with taper-land thrust faces.
The M module Bearings are designed for ease of assembly by positioning the screws, pins etc. in such a way that assembly failures can be eliminated.
Features & Advantages
The finned bearing housings are made of high-quality cast iron. The spherical bearing shell support is designed for even load distribution to the bottom half of the bearing housing is suitable for high loads.
On request, the housing can be made of nodular cast iron or cast steel. Tapped holes for temperature and oil level monitoring and oil inlet/outlet are available on both sides of the Bearing housing. If required, provision for oil cooler and vibration metering instruments can be provided by simple additional work on finished housings.
We are Manufacturer, Supplier, Exporter of White Metal Bearings, Standard Bearing Assemblies, Hydrodynamic Bearings Series, MM Centre Flange Bearings - DIN 31694 in Kolhapur, Maharashtra, India

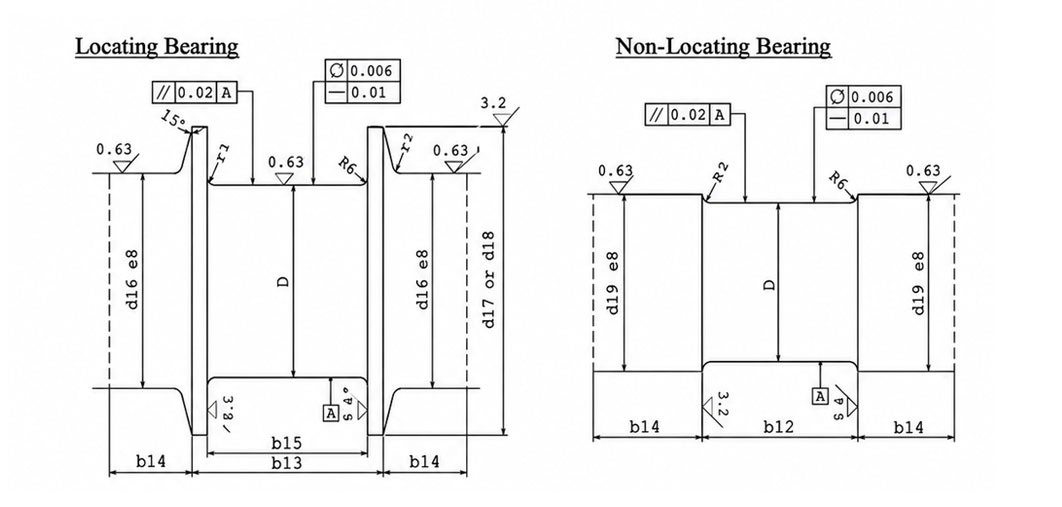

The Bearing shell comprises of a low carbon steel body, lined with Tin based white Metal. It is supported by the spherical seat of the Bearing Housing. Depending on applicational requirements, different types of Bearing Shells are used, for example:
Q -Bearing Shell Without metal shoulders.(non-locating bearing only).
B -Bearing Shell With plain white metal lined thrust Shoulders with Oil Pockets.
K -Bearing Shell With White Metal lined thrust shoulders With taper-land faces.
The MM Bearing bush comes with Guide Bush and loose oil ring .
Up to 20 m/s peripheral speed, a Lubrication of Bearing shell is normally achieved through application of loose oil ring. If required, bearing can be equipped with internal oil cooler or arranged for external oil supply with external oil cooling. When external circulating oil system is connected, the oil ring provides emergency oil supply in the event of failure of the external oil supply system for the length of shut-down period.
Seals

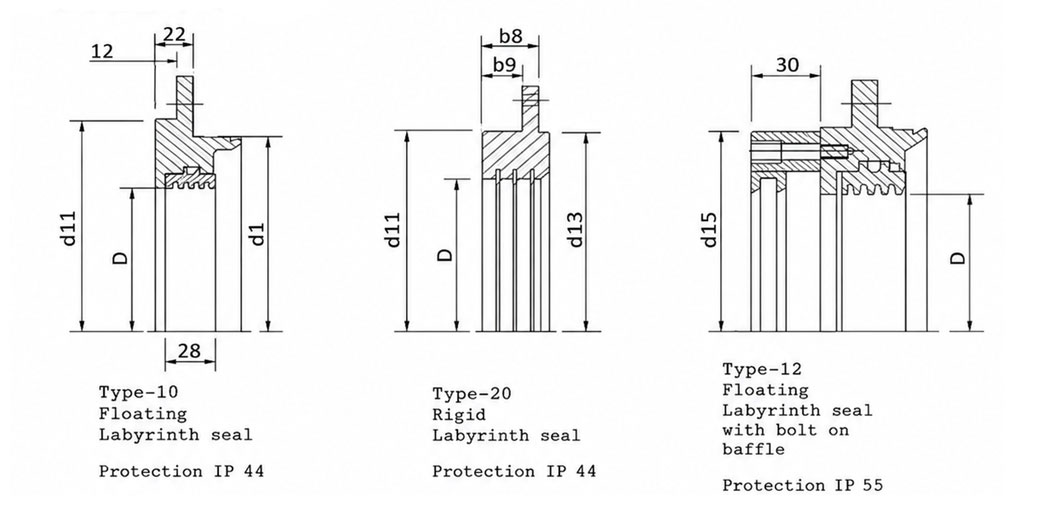

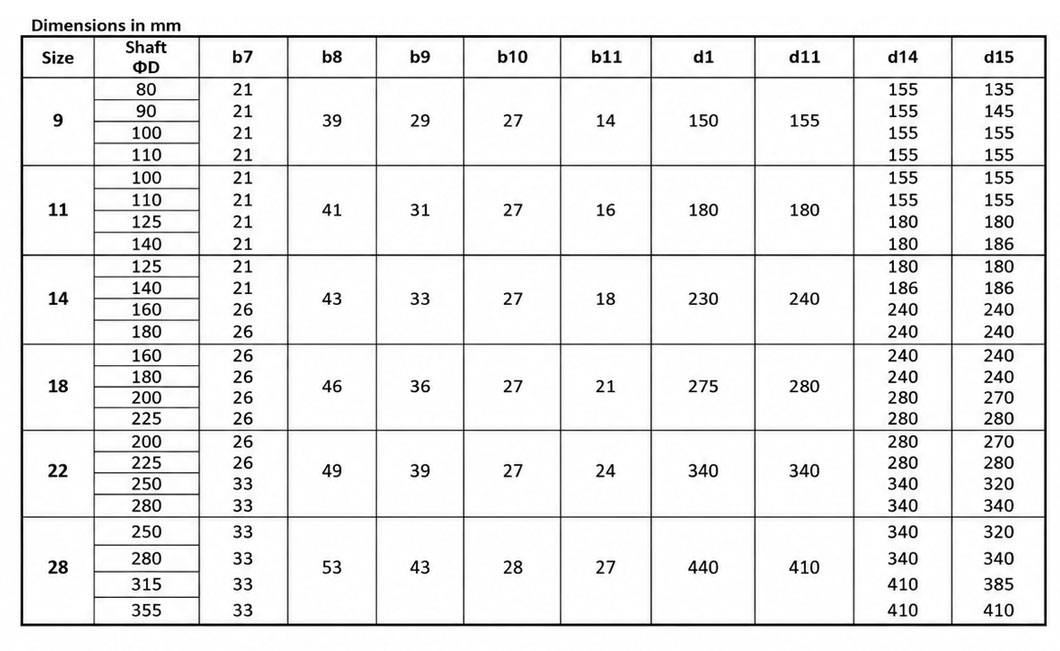

For standard application, MM Bearings are supplied with floating labyrinth seals. The seals are made from high temperature resistant material and achieve protection grade IP-44. Other seals available with the M modular range are :
- Rigid Seal (IP 44) for high oil throughput.
- Floating labyrinth seal with additional bolt-on baffle (IP-55)
- Rigid seal with additional bolt-on baffle (IP-55)
- Floating labyrinth seal with additional dust flinger (IP-54)
Bearing end covers are also available
In addition to the end seal to prevent oil being drawn by air turbulence into the machine, a machine seal in either one piece or split version, is provided. The space between the seal and bearing is connected to the atmosphere by Vent hoses.
In order to prevent stray currents, the, MM Bearing can be supplied as an insulated version. The insulated bearing has a liner of synthetic insulating material on the spherical seat of the housing, which is particularly wear and temperature resistant.
The friction heat is normally dissipated by radiation and convection. When this is insufficient the bearing can be cooled by water cooler in oil sump of bearing or in other cases the oil supply with external oil cooling is available. Tapped holes for external oil supply are provided and connection for oil cooler can easily be machined.
Depending upon the operating condition, normal branded mineral oil of suitable viscosity with low foaming tendency and good aging characteristics can be used. The exact viscosity grade of oil is available on request
Applications
Power Plants
Steel Industry
Cement Industry
Marine Industry
Sugar Industry
Textile Industry
Paper Industry
Mining Industry
